What is carbon tracking? Companies need carbon tracking to keep up with trends while protecting the environment and their future. Think of it as a GPS that guides businesses toward global sustainability goals. The numbers tell an interesting story – 71 percent of employees and job seekers prefer companies that care about the environment .
Carbon tracking shows a company’s total CO2 emissions, and you also need to monitor emissions from specific locations and processes. Investors now use this sustainability data to compare where to invest and assess company risk levels. The process comes with its challenges, especially when moisture and dust accelerate carbon tracking in outdoor units. You should call it a path to ground when readings fall below 20 megohms, suggesting potential problems. This piece offers expert solutions to address these challenges in carbon emissions tracking. Industry leaders can use these insights to develop more effective maintenance strategies and reliable emission-tracking methods.
Understanding Carbon Tracking Failures in Industrial Systems
Carbon tracking in industrial systems disrupts operations well beyond simple equipment failures. We need to understand why it happens so we can implement preventive measures that work.
Electrical arcing and carbon buildup in contactors
Electrical arcing is the primary cause of carbon tracking failures. A small electrical arc forms naturally when a contactor de-energizes and pulls away from its contacts. This arc’s intense heat creates carbon as a byproduct [1]. Carbon builds up on contactor surfaces, forming a progressively thicker layer. The buildup might seem harmless at first, but as the carbon layer gets thicker, it creates conductive paths across power legs or to the grounded panel [1].
Carbon deposits work just like an electrical highway. The conductive path grows stronger with each contactor operation as more carbon accumulates. The area’s temperature can rise substantially due to thermal stress, which might lead to thermal depolymerization of polymeric materials [2].
Environmental triggers: moisture, dust, and outdoor exposure
Indoor units rarely fail due to carbon tracking compared to outdoor units. This happens because outdoor units are constantly exposed to the elements [1]. Moisture embeds itself in carbon tracks on damp days, dramatically boosting conductivity [1].
On top of that, dust speeds up this deterioration. Units that operate under negative pressure from blower fans pull dust right into electrical cabinets [1]. This dust gives moisture more surface area to stick to and helps tracking form. These contaminants create ideal conditions for tracking when combined with high humidity—conductive paths form along insulating surfaces due to electrical stress and surface contamination [3].
Common symptoms: blown fuses and short circuits
You can catch carbon-tracking problems early by identifying key symptoms. Blown fuses are a significant warning sign—not the cause but a symptom of deeper problems [4]. Technicians should take these steps right away when they find blown fuses:
- Turn off the local disconnect and check the line sides of all contactors
- Search for black carbon deposits and melted terminals on contactors
- Use a megohmmeter—readings below 20 megohms show a path to ground [1]
Short circuits occur when carbon forms a conductive bridge, causing fuses to blow instantly [1]. The carbon path’s resistance drops dramatically, especially with moisture present. Equipment damage can become severe if left untreated, and recurring short circuits may even cause fires due to intense heat.
Diagnosing Carbon Tracking in Electrical Equipment
Carbon-tracking diagnosis requires systematic inspection techniques that identify problems before catastrophic failures occur. Expert technicians use proven methods to detect these issues early and determine the proper corrective actions.
Visual inspection for carbon deposits and melted terminals

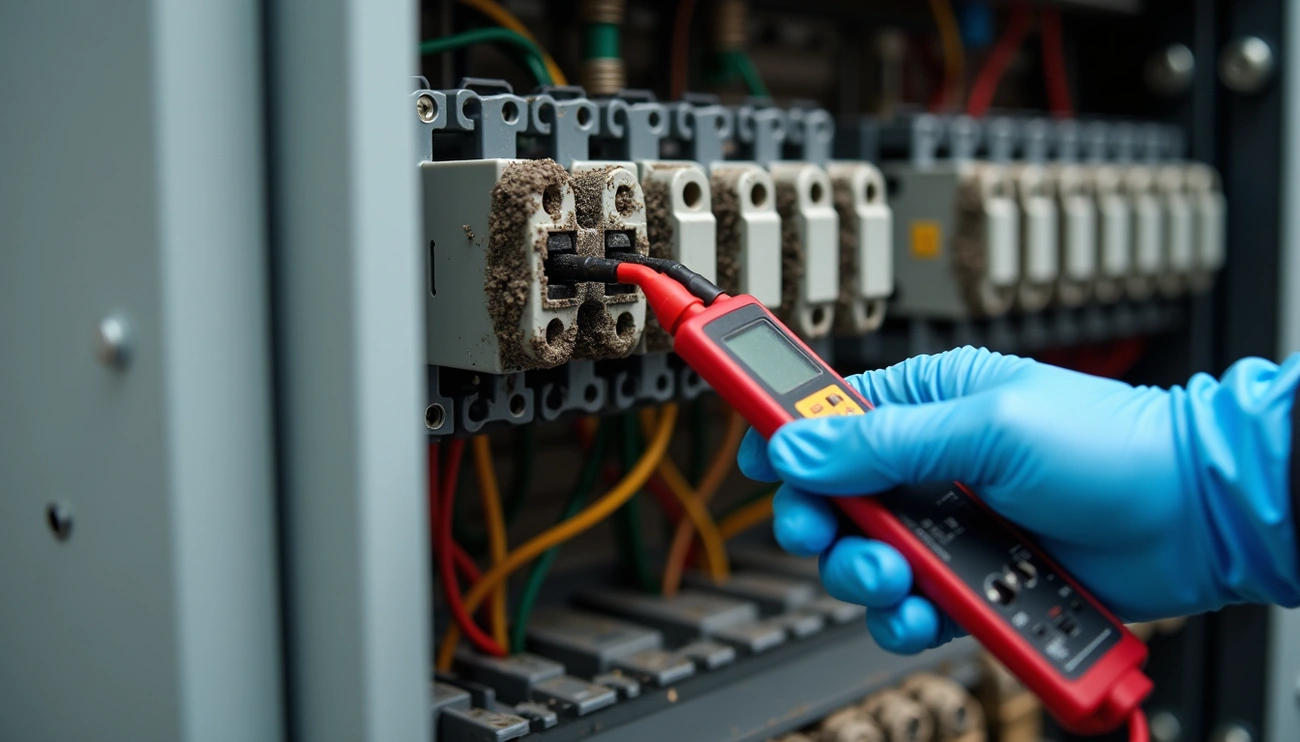

Visual inspection is our first defense against carbon tracking problems. Technicians must enter contactors to spot burn marks or discoloration on contact surfaces that indicate overheating [5]. Black carbon deposits along line-side terminals show up as dark, irregular paths between conductors or between a conductor and ground [6].
The line-side of contactors needs special attention, as this area is prone to tracking issues. Note that slightly melted top terminals often signal the start of carbon tracking problems before visible carbon paths appear [1]. A close look at the wiring insulation in these areas might reveal additional damage from heat exposure.
Using a megohmmeter: <20 megohms as failure threshold
A megohmmeter becomes crucial for detecting invisible conductive paths when visual inspection results are unclear. Here’s how to run this test:
- Disconnect all wiring from the contactor
- Place one lead on the contactor line side terminal
- Connect the other lead to ground
- Apply appropriate test voltage
Readings below 20 megohms indicate a conductive path to ground and signal carbon tracking issues [1]. Many standards consider insulation resistance values below five megohms to be marginal and warrant further investigation [7]. Values below one megohm require immediate action in critical applications, as they indicate severe insulation degradation [8].
When to replace contactors vs. clean terminals
The severity of carbon deposits determines whether to clean or replace components. You can remove minor surface contamination with a soft cloth or manufacturer-approved cleaner, but avoid abrasive materials that might damage contact surfaces [5].
Contactor replacement is necessary if visual inspections reveal significant pitting, erosion, or uneven contact surfaces [5]. Contactors with heavy carbon buildup need replacement rather than cleaning since cleaning risks single-phasing with motors [9]. Safety must guide this decision – equipment failures cost more than contactor replacement in production losses [9].
Preventive Maintenance Strategies for Carbon Tracking
Preventive maintenance is the lifeblood of managing carbon-tracking issues before they turn into costly equipment failures. Innovative approaches significantly reduce the risk of unexpected downtime and help equipment last longer.
Routine cabinet inspections and cleaning schedules
Equipment type and operating conditions should determine precise inspection intervals in scheduled maintenance programs [10]. Monthly inspections work best for electrical cabinets in high-dust environments [11]. Therefore, maintenance staff should:
- Vacuum clean enclosures of loose dirt (avoid compressed air, which embeds particles in insulation)
- Use lint-free rags with manufacturer-approved solvents for stubborn contaminants
- Clean ventilation openings and fan grills to prevent dust buildup [12]
Contactor replacement guidelines based on carbon levels
Technicians must decide whether cleaning is enough or replacement becomes necessary after finding carbon deposits. Contactors with heavy carbon buildup should be replaced immediately rather than cleaned [1]. Original manufacturer-approved parts should be used to ensure reliability—equipment fails three times more often when components fall outside scheduled maintenance programs [12].
Sealing electrical enclosures to reduce dust ingress
Proper enclosure sealing is crucial, especially in industrial environments. Electrical cabinets need a minimum IP5X rating to prevent dust ingress [13]. Regular checks and replacement of damaged gaskets help maintain environmental integrity. Positive-pressure ventilation systems with proper filtration can minimize dust infiltration in outdoor installations, while pressure monitoring confirms ventilation effectiveness [13].
Tools and Techniques for Reliable Emission Tracking
Modern emission monitoring requires specialized tools to detect issues before systems fail. The right tools at the right time can make all the difference between staying ahead of maintenance and getting hit with expensive repairs.
Using megohmmeters for early detection
Megohmmeters are the main diagnostic tools for carbon tracking detection. These tools work by sending high DC voltage (typically 100V to 15,000V) through electrical components to measure insulation resistance in megohms, gigohms, or teraohms [14]. The basic principle is simple: they apply a voltage you select between conductors (or between a conductor and ground), measure the leakage current, and calculate the resistance using Ohm’s Law [14]. When readings drop below 20 megohms, you’ve found a conductive path to ground, which points to possible carbon-tracking problems [1].
Documenting carbon tracking incidents for trend analysis
Good documentation of tracking incidents builds valuable historical data that reveals patterns over time. When you continuously collect data from production, operations, materials, equipment performance, and sensor readings, you identify areas that need improvement [15]. On top of that, AI algorithms combined with live quality data can spot problems quickly and warn you before they hit critical thresholds [15].
Training technicians on carbon tracking diagnostics
Technicians should know that black lines on spark plugs’ ceramic ends indicate misfiring [16]. On top of that, carbon tracks on spark plugs mean similar tracks will show up inside spark plug boots [16]. Competent technicians always check both old spark plugs and boots before putting in new ones [16].
Conclusion
Carbon tracking plays a vital role in modern industrial operations. It affects environmental sustainability goals and equipment reliability. Visual inspections and megohmmeter testing help catch problems early and cut down the risk of catastrophic failures. Companies that stick to regular preventive maintenance schedules experience fewer unexpected downtime events. Their equipment also lasts longer.
Environmental factors certainly speed up the problems with carbon tracking. This is especially true for outdoor installations. Moisture and dust create ideal conditions for the formation of conductive paths. System integrity depends on properly sealed electrical enclosures. When readings fall below 20 megohms, technicians should take immediate action.
Managing carbon tracking needs a detailed plan. Companies should document all incidents, replace damaged parts promptly, and train their maintenance teams regularly. Systematic monitoring gives valuable insights that help spot troubling patterns. These patterns let companies create targeted solutions.
Companies that make carbon tracking a priority in their sustainability and maintenance plans gain a competitive advantage. These benefits go beyond reliable equipment. They boost investor confidence, make employees happier, and reduce environmental harm. Innovative industry leaders know that active carbon tracking management is both technically necessary and strategically wise for business.
Key Takeaways
Carbon tracking in industrial systems poses serious operational risks, but proactive management strategies can prevent costly failures and support sustainability goals.
• Use megohmmeter testing regularly – Readings below 20 megohms indicate dangerous conductive paths requiring immediate attention to prevent equipment failure.
• Prioritize outdoor unit maintenance – Moisture and dust in outdoor installations accelerate carbon tracking; implement sealed enclosures and positive-pressure ventilation systems.
• Replace rather than clean severely damaged contactors – Extensive carbon buildup requires full replacement, not cleaning, to ensure system reliability and safety.
• Establish monthly inspection schedules – Regular visual inspections for black carbon deposits and melted terminals catch problems before they cause blown fuses or short circuits.
• Document all incidents systematically – Track carbon tracking patterns to identify trends, optimize maintenance schedules, and improve long-term equipment performance.
Effective carbon tracking management combines technical expertise with strategic planning, delivering both operational reliability and environmental sustainability benefits that enhance competitive positioning.
FAQs
Q1. What is carbon tracking, and why is it important for businesses? Carbon tracking is a process that measures a company’s CO2 emissions, helping businesses monitor their environmental impact and work towards sustainability goals. It’s important because it allows companies to assess their carbon footprint, attract environmentally conscious employees, and provide valuable data for investors evaluating investment opportunities and risks.
Q2. How does carbon tracking failure occur in industrial systems? Carbon tracking failure in industrial systems typically occurs due to electrical arcing in contactors, which creates carbon buildup over time. This is exacerbated by environmental factors like moisture and dust, especially in outdoor units. The accumulation of carbon can create conductive paths, leading to short circuits and equipment failure.
Q3. What are the signs of carbon tracking problems in electrical equipment? Common signs of carbon tracking include blown fuses, short circuits, visible black carbon deposits on contactors, and melted terminals. Using a megohmmeter, readings below 20 megohms indicate a potential path to ground, signaling carbon tracking issues that require immediate attention.
Q4. How can businesses prevent carbon tracking issues? Preventive measures include implementing routine cabinet inspections and cleaning schedules, replacing contactors with significant carbon buildup, and properly sealing electrical enclosures to reduce dust ingress. Regular maintenance, especially for outdoor units, is crucial in minimizing the risk of carbon tracking failures.
Q5. What tools are essential for reliable carbon tracking diagnostics? Megohmmeters are crucial for early detection of carbon tracking issues. These tools measure insulation resistance and can identify potential problems before they cause system failures. Additionally, systematic documentation of carbon-tracking incidents and ongoing training for technicians in diagnostic procedures are essential for effective carbon-tracking management.
